Brand Name :lonroy
Place of Origin :Guangdong, China
Model Number :XF-16913
MOQ :5
Price :$380
Funnel material :Stainless steel
Funnel taper :60°±0.5
Funnel outlet diameter :12.7mm
Measuring cup volume :100 ml
Measuring cup material :Stainless steel
Measuring cup inner diameter :Φ 39 mm
Blocking rod material :Stainless steel
Scraper material :Stainless steel
Measurement range :Dust accumulation density
Measurement accuracy :Difference < 1g between measurements
Measurement method :Variational funnel method
Standard compliance :GB/T 16913.3-2008
Applicable powders :Metal, nonmetal, chemical powders
Measurement steps :5-step process
Standard configuration :Densitometer, plug rod, cylinder, measuring cup, scraper, brush
Contact Now
Chemical Powder Bulk Density Meter/natural bulk density meter/variational funnel method
Product Introduction
The natural bulk density meter (variational funnel method) is designed and produced in accordance with the national standard GB/T 16913.3-2008.Used for determination of dust accumulation density.
Widely used in various metal powder, nonmetal powder, chemical powder such as powder metallurgy powder, magnetic material powder, alloy powder, milk powder, abrasive, coating, food additive accumulation density test
Principle: dust falls freely from the funnel to fill the measuring cup at a certain height;The mass of dust per unit volume in the measuring cup under loose loading condition is measured, that is, dust accumulation dens
Chemical Powder Bulk Density Meter/natural bulk density meter/variational funnel method

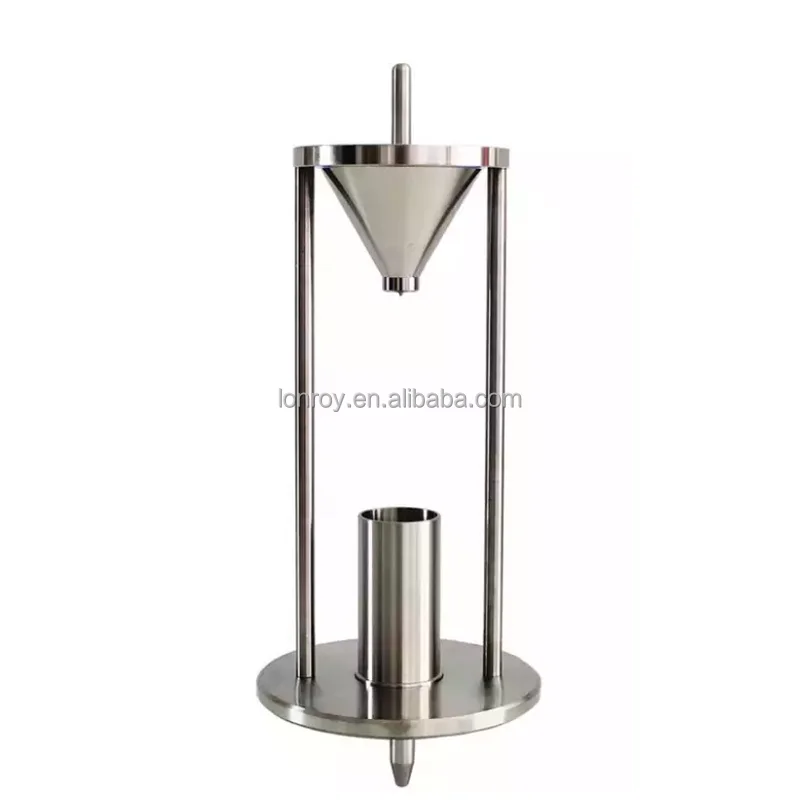

Instrument structure

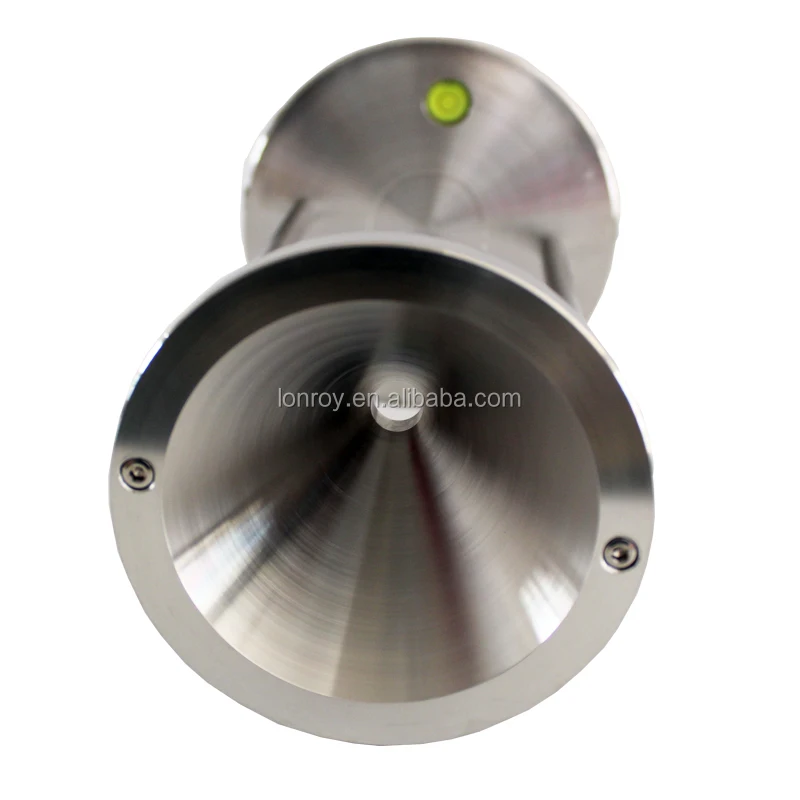

Funnel (flow outlet diameter: 12.7mm)
the funnel is made of stainless steel, in which the taper of the funnel is 60°±0.5
Blocking rod
stainless steel material, used to prevent dust falling down when dust is put into the funnel.

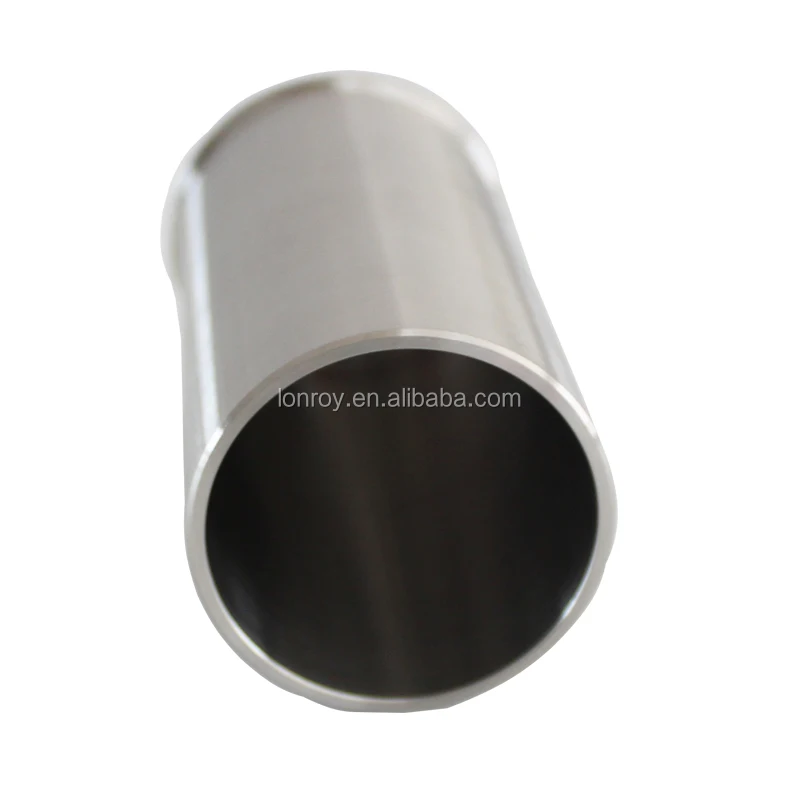

measuring cup
this device is equipped with a volume of 100 ml stainless steel cup, cup inner diameter for Φ 39 mm
scraper
stainless steel, used for dust into the funnel when the removal of excess dust.
Chemical Powder Bulk Density Meter/natural bulk density meter/variational funnel method
The determination of steps
1. Test the weight m1 of an empty stainless steel measuring cup
2. Plug the funnel with a stick and weigh some powder into the funnel
3. Unplug the plug and leave the powder free downstairs until it completely overflows the measuring cup
4. Use a stainless steel ruler to level off any excess powder in the measuring cup and weigh the cup and powder to m2
5. Calculate the powder deposition density according to the formula: =(m2-m1)/V remark: V corrected volume of measuring cylinder, 100cm3.
Note: The difference between the maximum and minimum dust mass value obtained from three consecutive measurements should be less than 1g, and the average value of three measurements meeting the requirements should be taken as the measurement result.

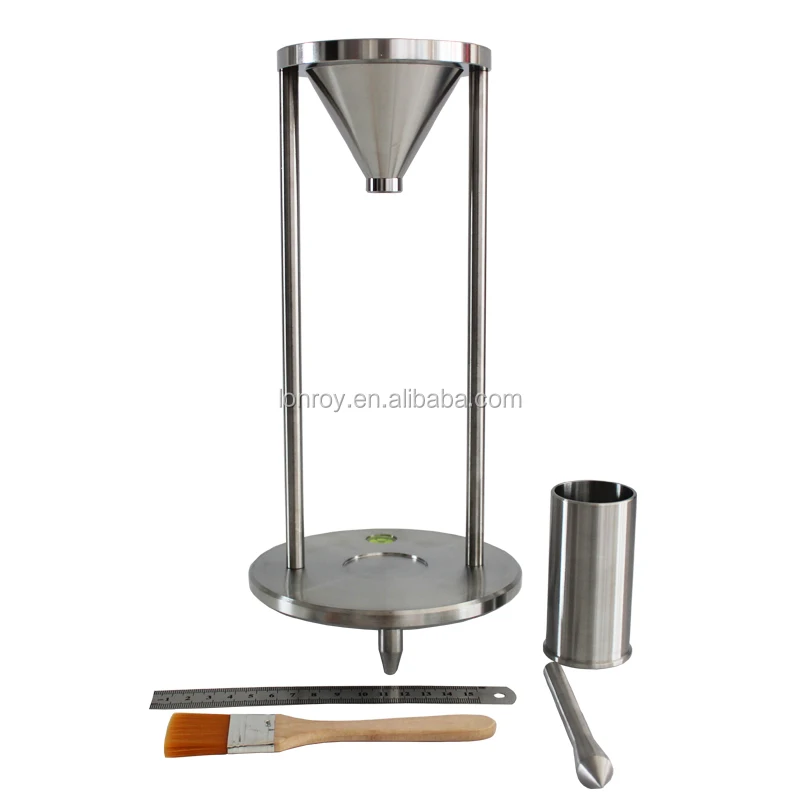

Standard configuration: densitometer main engine plug rod cylinder measuring cup scraper brush
