ASTM D4751 Compliant Geotextile Effective Pore Size Tester with IP56 Protection and 220V Power Supply

Name: ASTM D4751 Compliant Geotextile Effective Pore Size Tester with IP56 Protection and 220V Power Supply
Brand: Lonroy
Price: 1 USD

Quality ASTM D4751 Compliant Geotextile Effective Pore Size Tester with IP56 Protection and 220V Power Supply for sale

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Screen inner diameter : 200mm

Sieve height : 400mm

Sieve amplitude : 10 ± 2 mm

Shaking frequency : 220 ± 10 times per minute

Vibration frequency : 150 ± 10 times per minute

Turning radius : 12 ± 1 mm

Timing range : Up to 60 minutes

Rotational speed : 2800 revolutions per minute

Voltage : 380V

Power : 370W

Dimensions : 660×400×880 mm (L×W×H)

Weight : 130 Kg

Protection class : IP56

Electricity : 380V 370W

Sieve seat amplitude : 10 ± 2 mm

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

ASTM D4751 Geotextile Effective Opening Size Testing Instrument Geotextile Effective Pore Size Tester Factory Price

Product Description

Comply with standards

GB/T 14799, ASTM D4751, JTG E50 T1144, SL/T 235-1999, etc.

Scope of Application

This method is applicable to the determination of the characteristic aperture of single-layer geotextiles and related products based on the dry sieving principle. This type of geotextile effective aperture tester is suitable for all types of geotextile products.

ASTM D4751 Geotextile Effective Opening Size Testing Instrument Geotextile Effective Pore Size Tester Factory Price

Technical Specification

Screen inner diameter	200mm
Height of stacked sieves	400mm
Sieve seat amplitude	10 ± 2 mm
Shaking frequency	220 ± 10 times per minute
Vibration frequency	150 ± 10 times per minute
Turning radius	12 ± 1 mm
Timing range	Up to 60 minutes
Rotational speed	2800 revolutions per minute
Electricity	380V 370W
Dimensions	660×400×880 mm (L×W×H)
Weight	130 Kg

Product Tags:

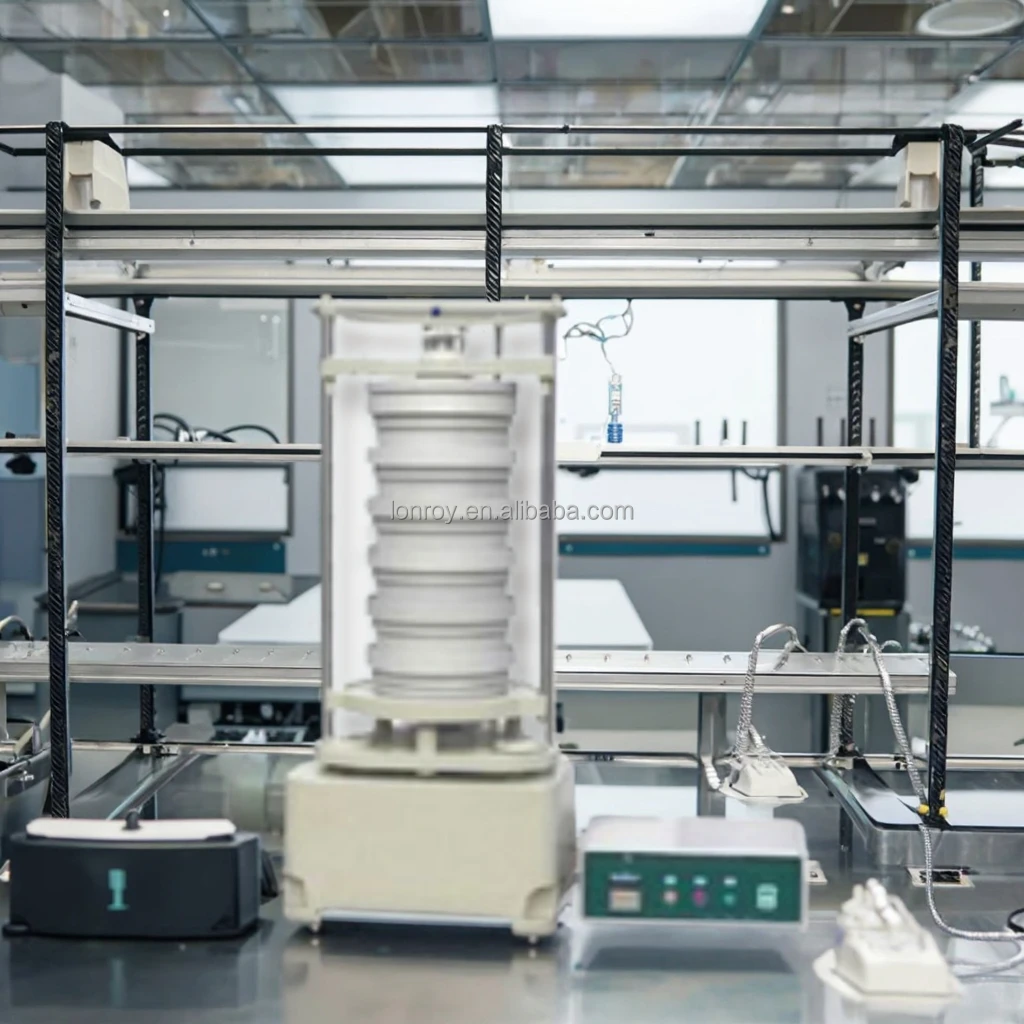

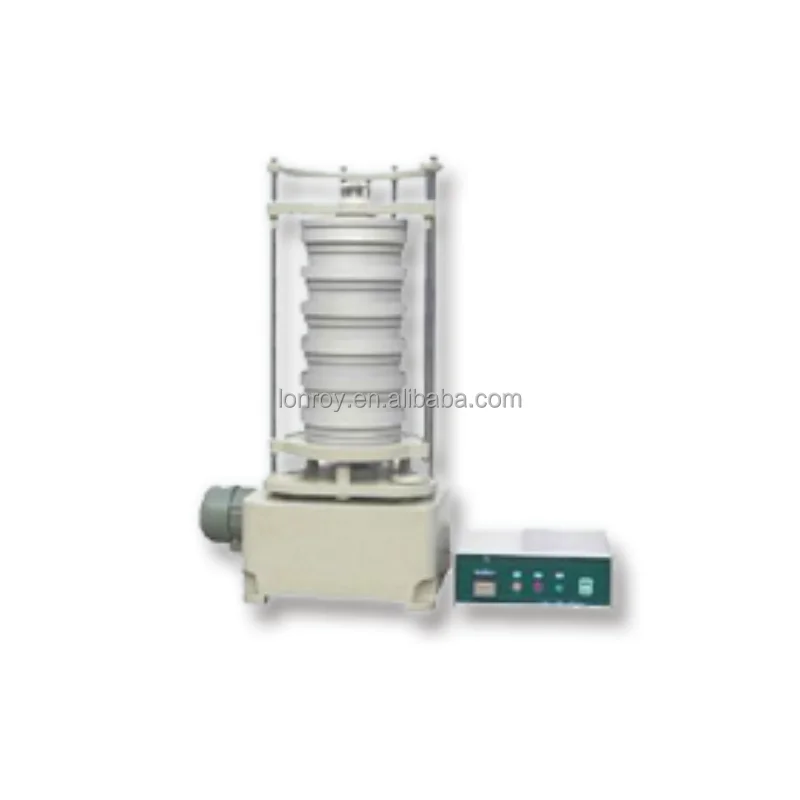

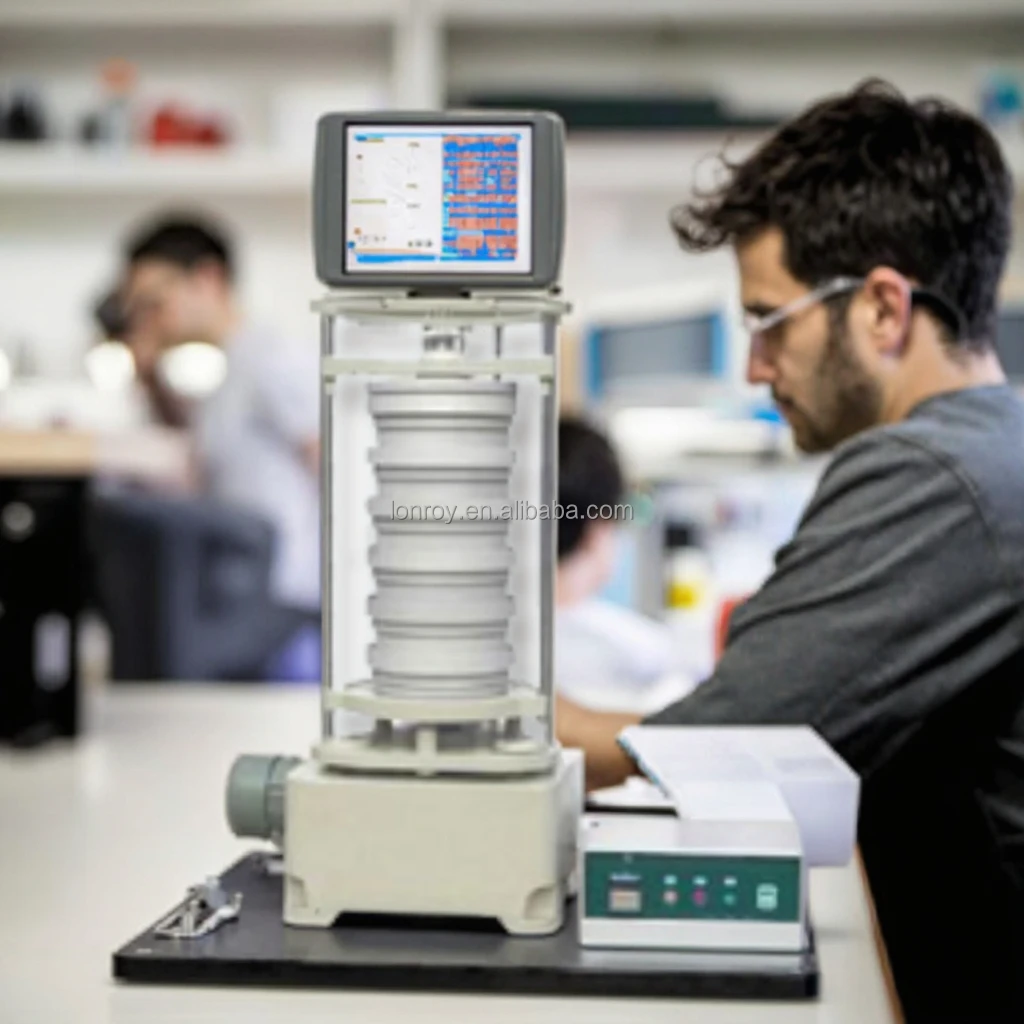

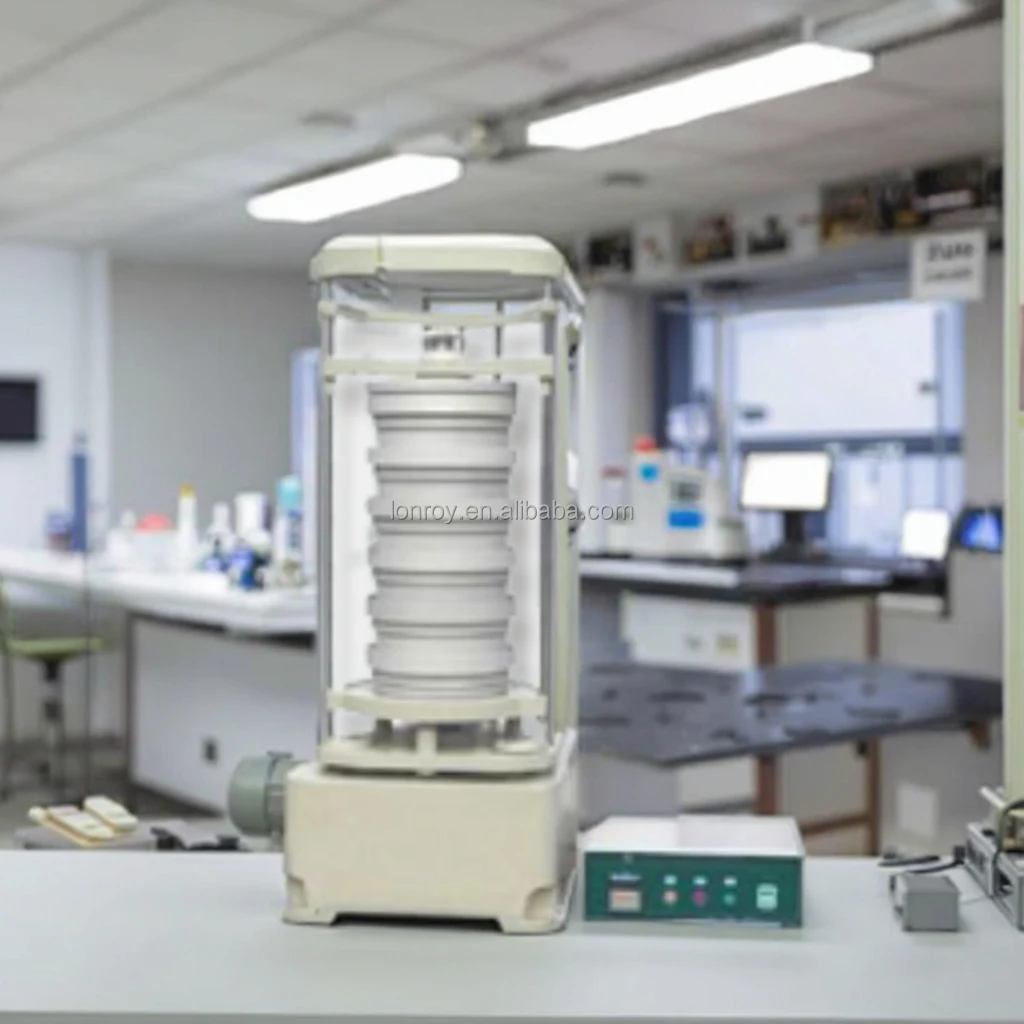

ASTM D4751 Compliant Geotextile Effective Pore Size Tester with IP56 Protection and 220V Power Supply Images
